P3.91-户外全彩250X250mm-16S--租赁款-铝箱-
1、Optional Cabinets style 500x500mm单元板参数Module Specifications1像素点间距Pixel pitch3.
1、Optional Cabinets style 500x500mm单元板参数Module Specifications1像素点间距Pixel pitch3.
★1、Optional Cabinets style 500x500mm
| 单元板参数Module Specifications |
| |||||||||
| 1 | 像素点间距Pixel pitch | 3.91mm | ||||||||
| 2 | 像素点间距Pixel configuration | 1R1G1B | ||||||||
| 3 | 灯珠型号LED encapsulation | SMD1921 | ||||||||
| 4 | 灯珠品牌Brand of LED lights | Kinglight LED lamps | ||||||||
| 5 | 单元板分辨率 Module resolution | 64dots * 64dots | ||||||||
| 6 | 单元板像素数Module pixel | 4,096dots | ||||||||

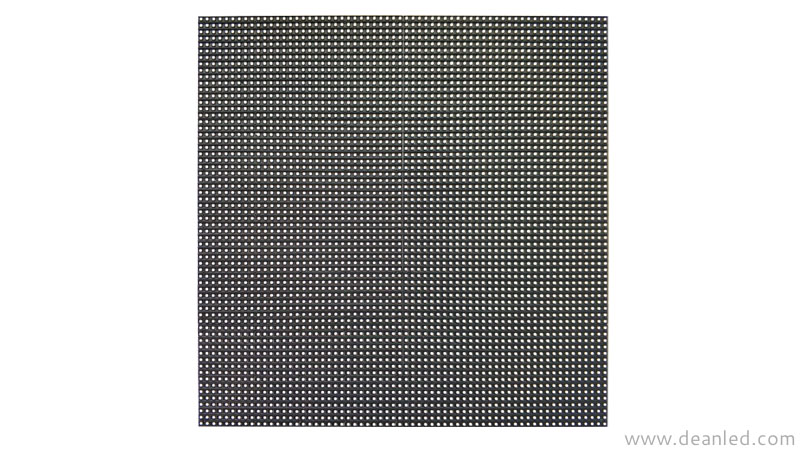

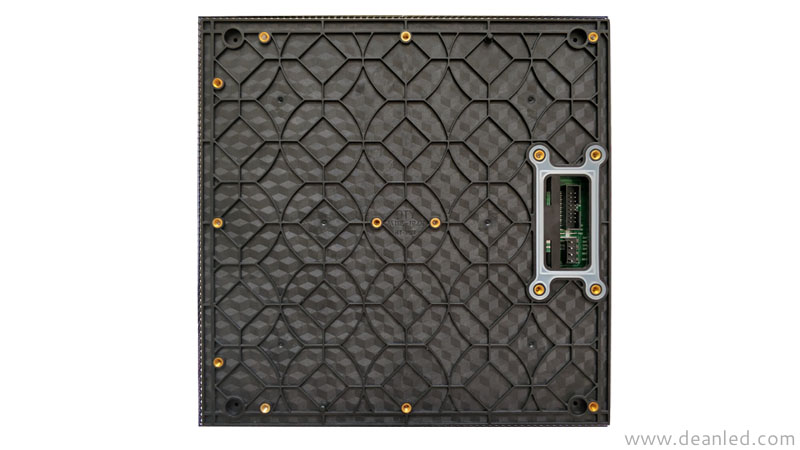

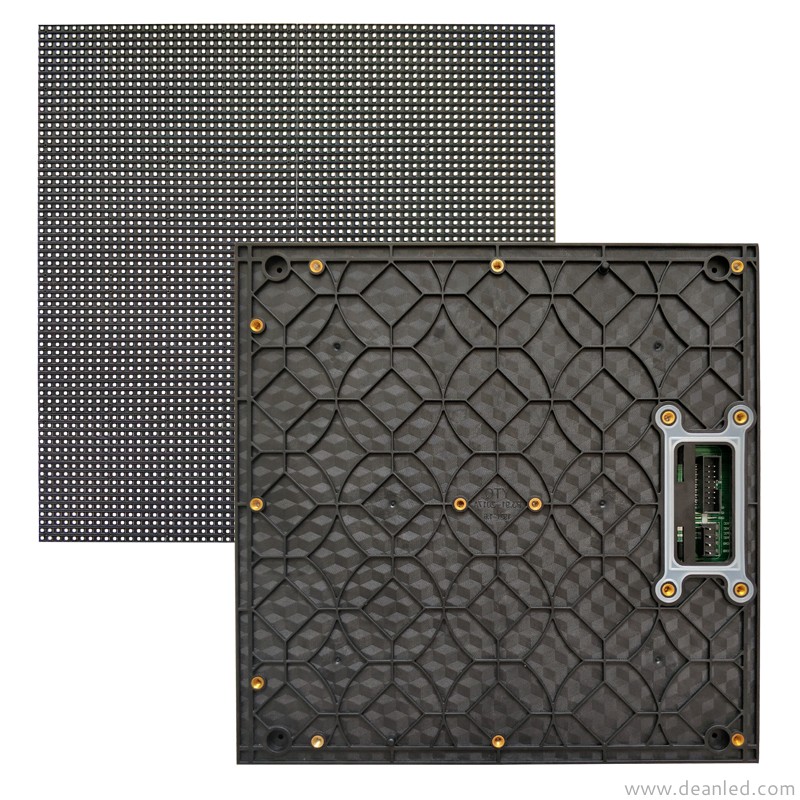

| 7 | 模组尺寸Module size | 250mm*250mm | ||||||||
| 箱体参数 Cabinet Parameters |
| |||||||||

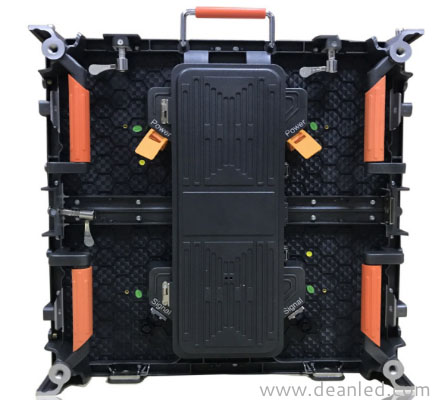

| 8 | 箱体尺寸 Cabinet size | (L*H)500mm*500mm*90mm | ||||||||
| 9 | 材料 Material | Die-casting aluminum | ||||||||
| 10 | 重量 Weight | About 7.5kg/pcs | ||||||||
| 11 | 面积 Area | 0.25m²/pcs | ||||||||
| 12 | 箱体分辨率 Cabinet resolution | 128dots * 128dots | ||||||||
| 13 | 平均功率 Average power consumption | 600w/m² | ||||||||
| 14 | 最大功率 Max. power consumption | 1,200w/m² | ||||||||
| 15 | 工作电压 Working Voltage | AC110 / AC220V±10% 50～60HZ | ||||||||
| 16 | 亮度 Brightness | ≥5,500cd/m² | ||||||||
| 17 | 亮度调节Brightness Adjustment | 手动Manual & 自动Automatically | ||||||||
| 18 | 灰度 Gray scale | 15 bit | ||||||||
| 19 | 驱动IC Drive IC | 2153 IC | ||||||||
| 20 | 驱动方式 Driving method | 1/16scan, 恒流constant current | ||||||||
| 21 | 刷 新 Refresh frequency | ≥1920Hz | ||||||||
| 22 | 侦频Frame frequency | ≥60Hz | ||||||||
| 整屏参数 Screen Parameters |
| |||||||||
| 23 | 总面积 Total area | m² | ||||||||
| 24 | 箱体数量 Cabinet quantity | pcs | ||||||||
| 25 | 每平方米像素数Pixel density | 65,536dots/m² | ||||||||
| 26 | 最佳观看距离Viewing distance | 3m～40m | ||||||||
| 27 | 可视角度 Viewing angle (H/V) | Horizontal 160° Vertical 160° | ||||||||
| 28 | 寿命 Life span | ≥100,000h | ||||||||
| 29 | 平均无故障时间 MTBF | ≥10,000h | ||||||||
| 30 | 工作电压Working temperature & humidity | ﹣20℃ ~ 65℃, 20％ to 90％ | ||||||||
| 31 | 存贮环境Storage temperature & humidity | ﹣40℃ ~ 85℃, 10％ to 95％ | ||||||||
| 32 | 控制距离Control Distance | CAT5: ≤100 meters; Optical Fiber Cable : 500m~15km | ||||||||
| 33 | 控制软件 Control software | LED video | ||||||||
| 34 | 控制系统 Control system | 诺瓦 Novastar | ||||||||
| 35 | 输入接口 Input signal | TV signals ,DVD, DVI, S-VIDEO, RGB, VGA and so on. | ||||||||
| 36 | 维护方式 Maintenance | 后维护Back maintenance | 参考图片Reference pictures | |||||||
| 37 | 正面防水防尘等级 IP grade | IP65 | ||||||||
